船用生活污水處理裝置屬IMO國際防止船舶造成海洋污染公約《MARPOL 73/78》附則IV的關鍵設備，用于處理船上廁所下水道糞便污水（又稱黑水），使之達到國際排放標準排放至舷處。本系列裝置遵守2006 年10月13日頒布的MEPC.159(55)決議和2012年10月5日通過的MEPC.227(64)決議。

本裝置除適用于各大船舶、石油平臺生活區外，還可用于陸地生活污水，經處理的水質完全能達到國家回用水水質要求。本裝置也可用作船上灰水的處理，但灰水應作預處理和選用容量較大的裝置相匹配。

本裝置獲得授權發明專利1項，實用新型專利1項。已于2009年4月獲得中國船級社型式認可證書和IMO認可通報，2011年2月通過德國勞氏船級社（GL）型式認可，取得MED證書，同時可提供ABS、DNV、BV、RS等船級社證書。

Marine Sewage Treatment Plant belongs to the key devices for prevention of pollution form ships in seas and oceans according to the revised Annex IV of the International Convention of the Prevention of Pollution (MARPOL 73/78).This device is applicable to treat the sewage, which means human body wastes and the wastes from the toilets on vessels and which is also called “black water”, to meet the effluent standards of IMO. MEPC.159（55), and discharge the effluent overboard . This device is according to the resolution MEPC.159(55) enacted on 13 October 2006.The convention (MARPOL 73/78) provides that all STPs installed on board on or after 1 January 2010 should meet the resolution MEPC159(55) and MEPC.227(64).

The device also can be used in terrestrial sewage,besides in ship vessels and oil platform.The water quality after treatment can reach the national reuse water quality requirements. It is also applicable to treat the galley、shower drainage which is called “grey water” on condition that the “grey water” is pretreated and there should select a bigger capacity model to match with.

This device has obtained one item of Authorized Patent and one item of Practical new patent, meanwhile has been obtained the Type Approval of CCS and IMO circular in April 2009, and it in February 2011 by Germanischer Lloyd (GL) type approval certificate MED made, while providing ABS, DNV, BV, RS and other classification societies certificate.

匯總各種規則和排放標準如下：

The different effluent standards and days for type test in some organizations are as follows：

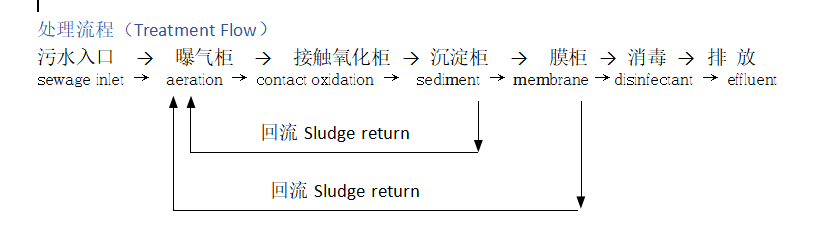

原理概述（Principle Description）

本裝置利用活性污泥、接觸氧化和膜生物反應器MBR的處理原理消解有機污染物質。MBR 能達到高效、徹底和干凈地處理污水，使排放水滿足IMO 新標準和其他更嚴酷的要求。

This device adopts the principle of Activated Sludge, Bio-contact Oxidation and Membrane Biological Reactor (MBR) to digest organic pollutant. MBR can treat organic pollutant efficiently, drastically and cleanly to ensure the effluent can meet the requirements of the resolution MEPC.159 (55) and other much hasher requirements.

技術特點 （Specification）

1、采用臥式圓筒設計，兩端圓形封頭，耐壓、結構緊湊。

2、裝置為全自動控制，符合24小時機艙無人值守的要求。

3、采用內置“MBR”技術，使得裝置體積縮小，解決艙容小而裝置體積大的矛盾。

4、本裝置在生物膜柜和中空纖維膜柜停歇曝氣，形成“好氧－缺氧”過程，解決“脫氮除磷”問題。

5、本裝置采用沉淀柜和膜柜內污泥自動“氣提法”以及膜的“在線”清洗等專利技術。

6、“在線”清洗技術的應用，使得膜上污垢自動脫落，恢復膜通量，解決了因艙容小，打開清洗或更換膜組的困難。

7、排放水經進一步處理后，可達到“中水回用”的要求。

1.The horizontal cylinder design, both ends of the circular head, pressure, compact structure.

2.The device is fully automatic control, in line with the requirements of 24 hours unattended cabin.

3.The use of built-in "MBR" technology, make the device volume reduced, to solve the contradiction of small cabin capacity and large device volume.

4.The device stops aeration in biofilm cabinet and hollow fiber membrane cabinet to form an "aerobic-anoxic" process and solve the problem of "nitrogen and phosphorus removal".

5.This device adopts sedimentation tank and membrane tank sludge automatic "air lifting" and membrane "online" cleaning and other patented technology.

6. The application of "online" cleaning technology makes the dirt on the membrane automatically fall off, restores the membrane flux, and solves the difficulty of cleaning or replacing the membrane group due to the small cabin capacity.

7. After further treatment, the discharged water can meet the requirements of "reclaimed water reuse".

技術參數 （Technical Data）

注：本公司保留裝置外形尺寸更改權，此外形僅作參考，具體以實物為準。

Note: Our company keeps the right of modifying the outline, The outline is only for your reference, please take the material object as standard.

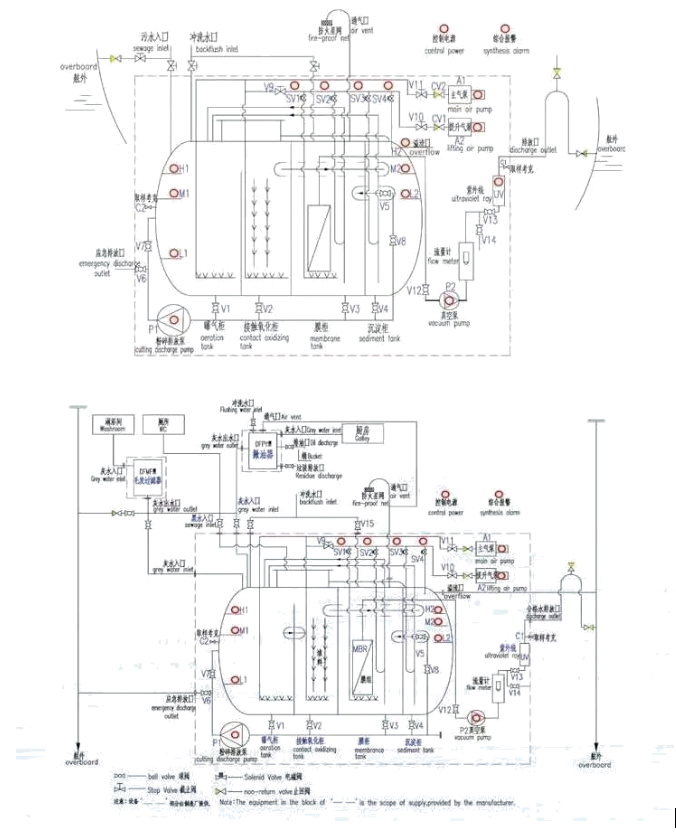

系統原理圖 （System Principle Drawing）

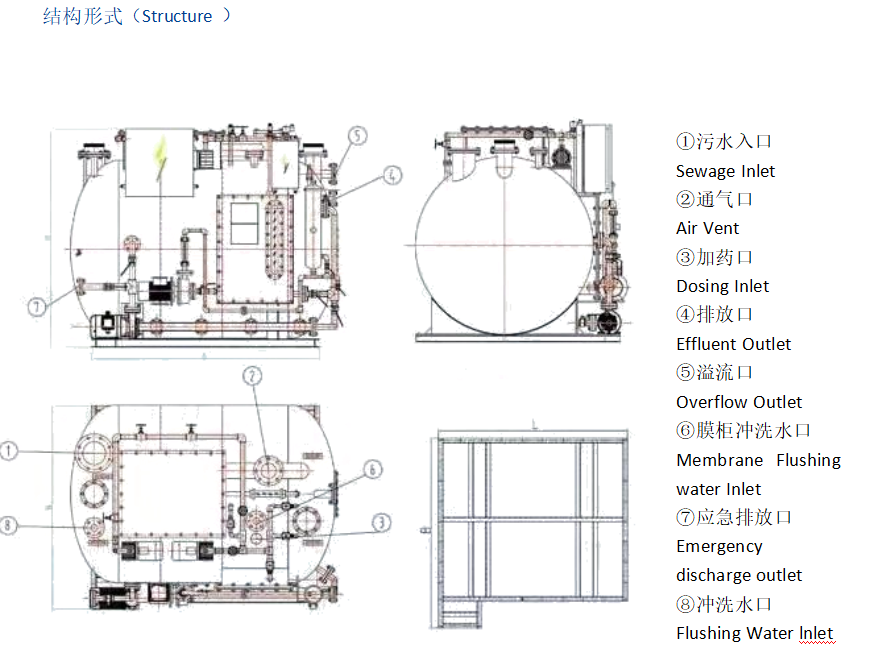

外形尺寸和接口（Outline Dimension and Interface）
